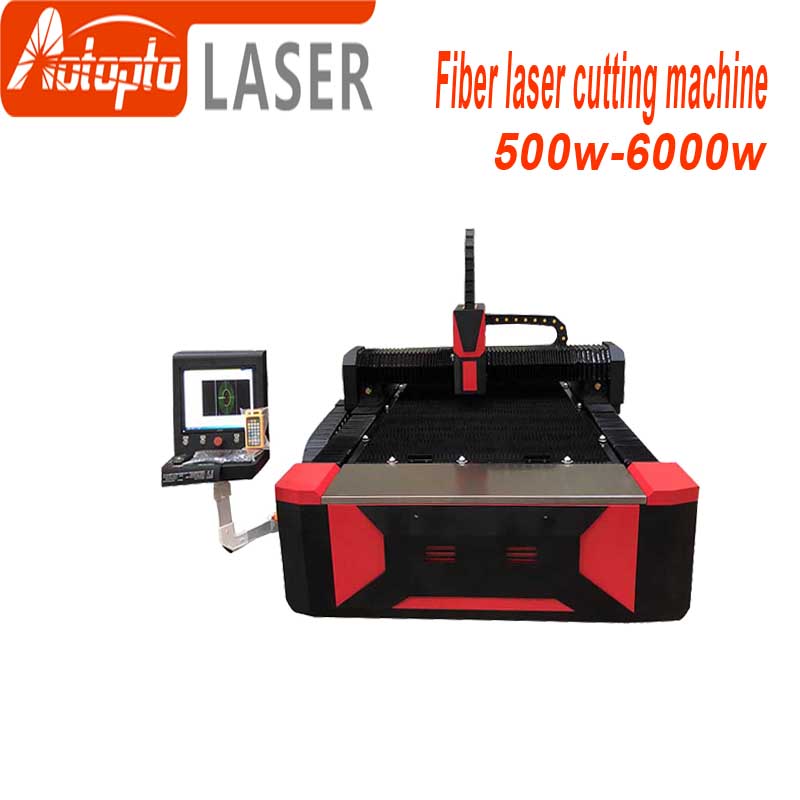

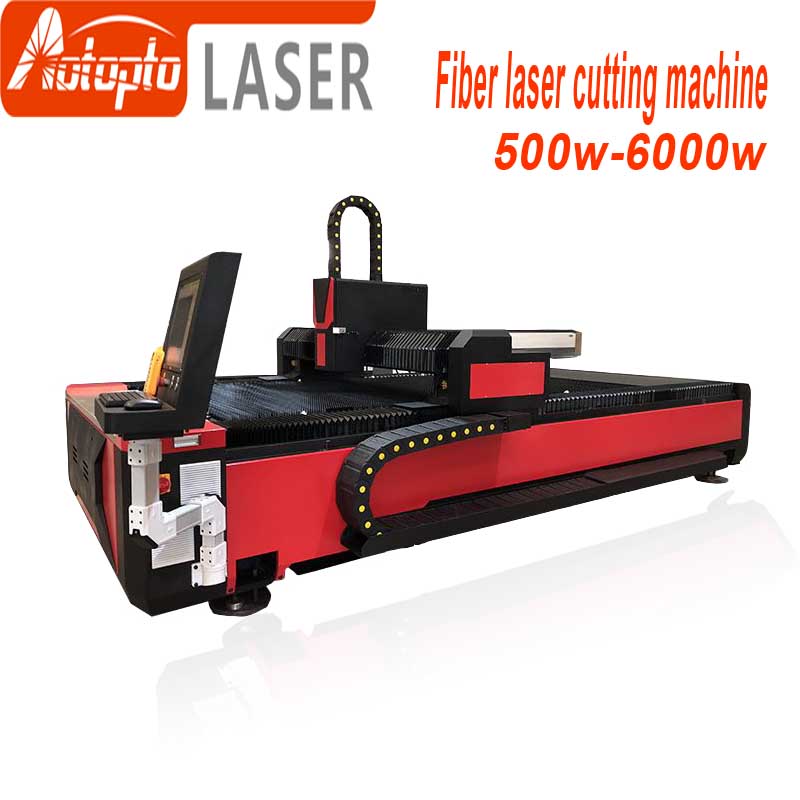

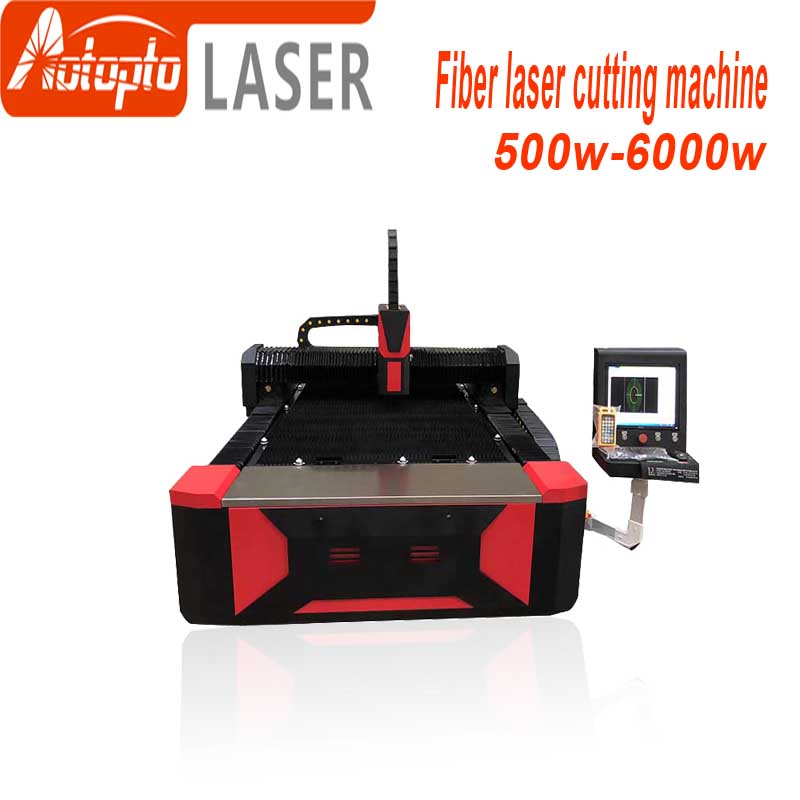

Fiber laser cutting machine 500w1000w 3000w raycus Max source

Fiber laser cutting machine 500w1000w 3000w raycus Max source
Fiber laser cutting machine 500w1000w 3000w raycus Max source
Fiber laser cutting machine 500w1000w 3000w raycus Max source

Product ID: 6597

Hits: 826

Company: Dongguan Aotopto Technology Co.LTD

Keywords: Fiber laser cutting machine   /   laser cutting machine   /   Raycus Max laser cutting machine

Inquiry Favorite

Five Advantages Of Products

  • Gantry rack & pinion double-drive structure, reinforced aluminum alloy crossbeam.
  • Imported IPG fiber laser generator, optimal electro-optical conversion efficiency.
  • German IGUS cable is used in the whole machine, reliable and stable.
  • Main components are Siemens, Schneider, SMC and other imported well-known brands.
  • The professional laser cutting software has the function of graphic arrangement and sharp angle smoothing, which can realize high-speed punching and marking.

Product Details

Parameter:

Working area:2500mm×1300mm/3500mm*1300mm

Laser power:300W-6000W(optional)

Maximum speed:60m/min

Laser type:Fiber laser

Transmission system:Gantry rack & pinion double drive

Maximum acceleration:0.6G

Positional accuracy:±0.05mm/1000mm

Reposition accuracy:±0.03mm/1000mm

Supporting format:PLT、DXF、AI、CAD etc.

Working environment:0-40℃ Humidity≤ 80% ,non-condensation

Gross power:4KW

Power input:220V/50Hz/60Hz

Gross weight:2300Kg

Net dimension:4520mm×2030mm×1750mm


Apply for metal material.

Can cut copper, brass, galvanized sheet and other high anti-material.
