Five Advantages Of Products

  • Best marking effect: the laser beam of fiber laser is fine and thin. It can provide the best marking effect among all the laser machines. Especially good in smallest character marking, such as mark on pen.
  • Deep marking: fiber laser can make deep marking up to 0.5mm on stainless steel and aluminium. While YAG and Diode marking only could mark 0.2mm-0.3mm. So it's suitable for the industries which has high requirement to the depth and accuracy.
  • High accuracy: fiber laser can reach up to 0.001mm precision, while diode only 0.01mm.
  • 10 Years Long lifetime: we use the fiber laser module made by Germany IPG technology, the lifetime of the fiber laser device is 100 thousand hours, so the machine can be used for 8-10 years. As for diode laser module is 20 thousand to 30 thousand hours and only can be used for 1-3 years.
  • No consumables: fiber laser machine can be used for 8-10 years without consumables.

Product Details

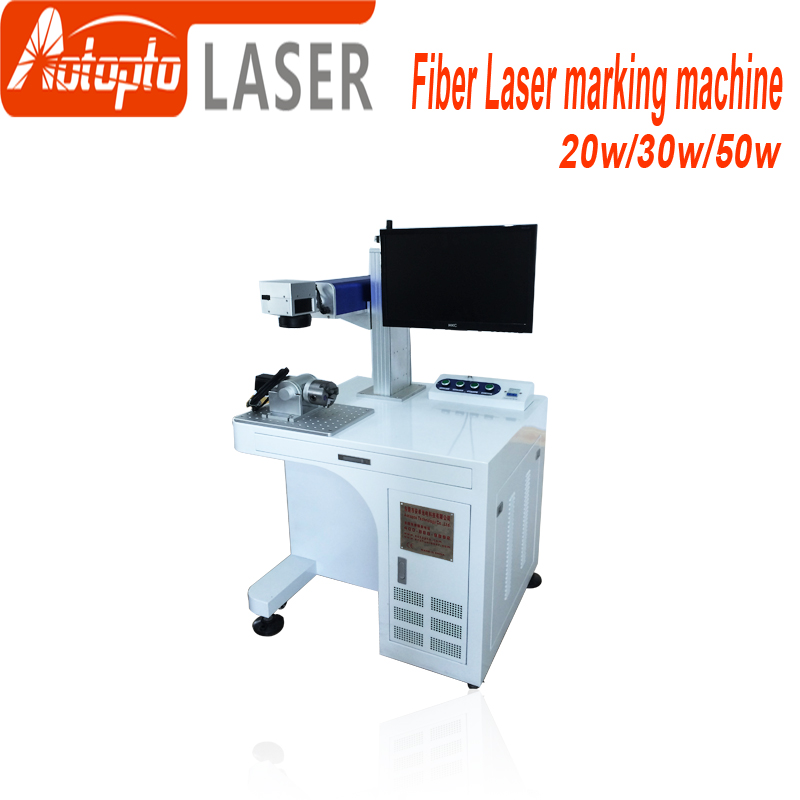

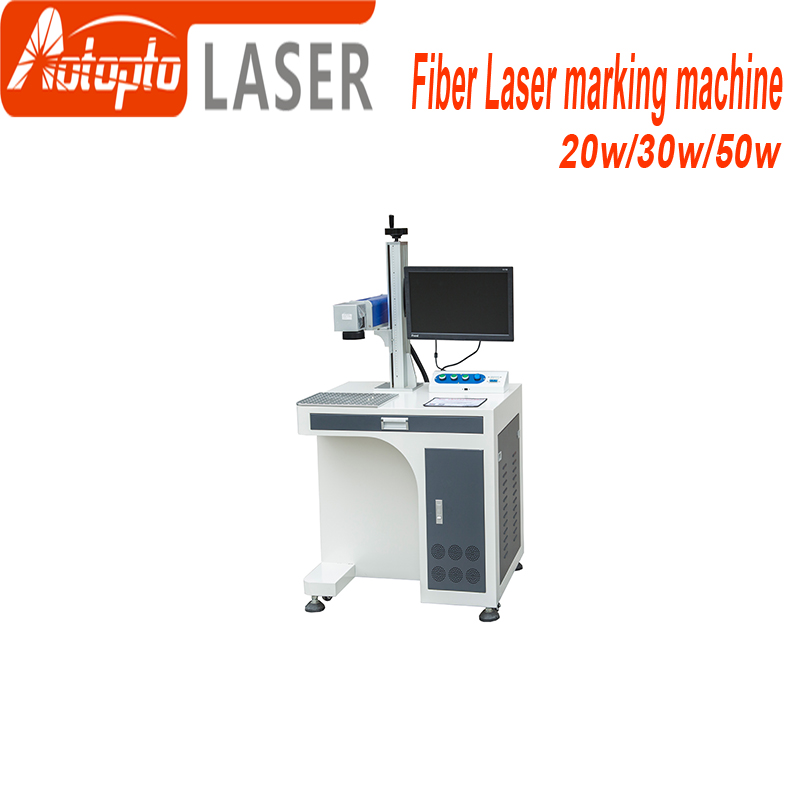

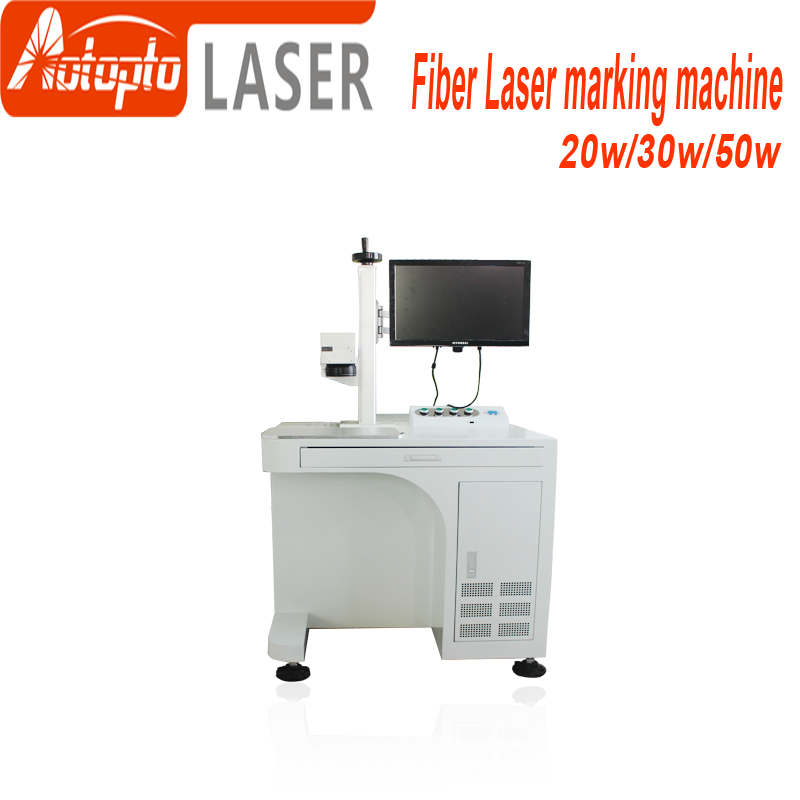

 Fiber laser marking machines. AZ-FB Series

1. Elaborate design, compact structure.
2. Electric lifting frame, easy to focus.
3. High speed marking speed, high efficiency, high precision.
4. Friendly operation platform design, easy operation.
5. Double red light focusing system, easy to position.

Technical Parameter

Laser power:20W/30W/50W

Wavelength :1.06μm

Spot   quality:<1.2㎡

Pulse   frequency:20~100KHz

Cooling   method:Air

Working   area(mm):70x70/110x110/175X175/200x200

Focal   length:100mm/163mm/254mm

Working   distance:98.8mm/184mm/288mm

Min line   width:0.03mmMin   character:0.2mm

Marking   speed:0~7000mm/s

Supported  graphic format:BMP, PLT, AI, DXF   etc.

Voltage:AC220V±10%

Frequency:50/60Hz

Overall   dimension:750mm X 600mm X   1270mm

Working environment:Temp:10~   30°C , Humidity:5~85%

Weight:100kg(Estimation)

Total   power:1.0kw



 (Widely used in electronic components, medical equipments industries, watches and glasses, IC card industry, plastic tooling industry, mobile phone and PC keyboard, kitchen and bathroom appliance, etc. )
