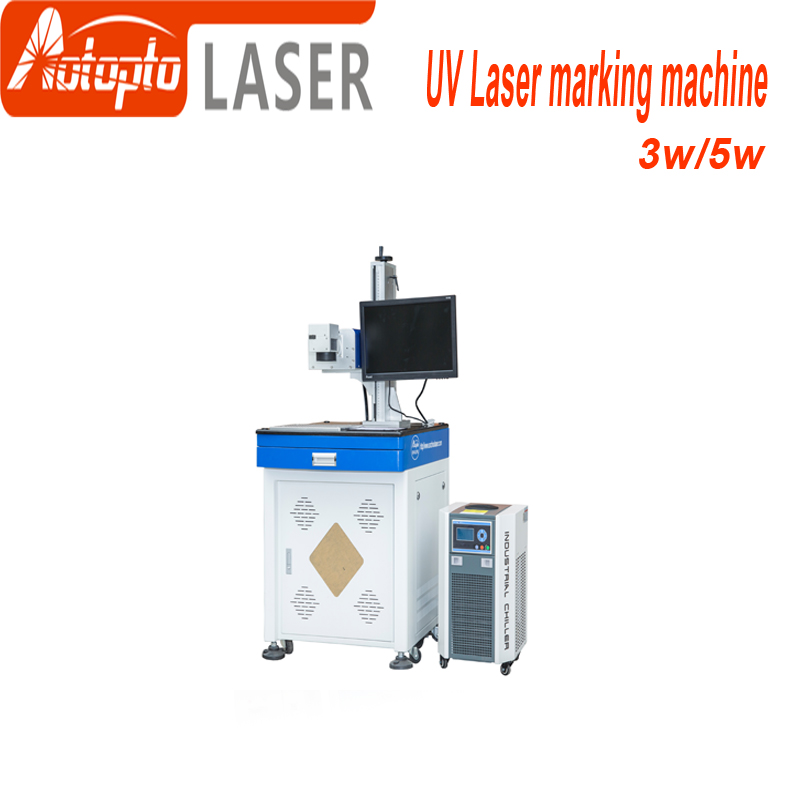

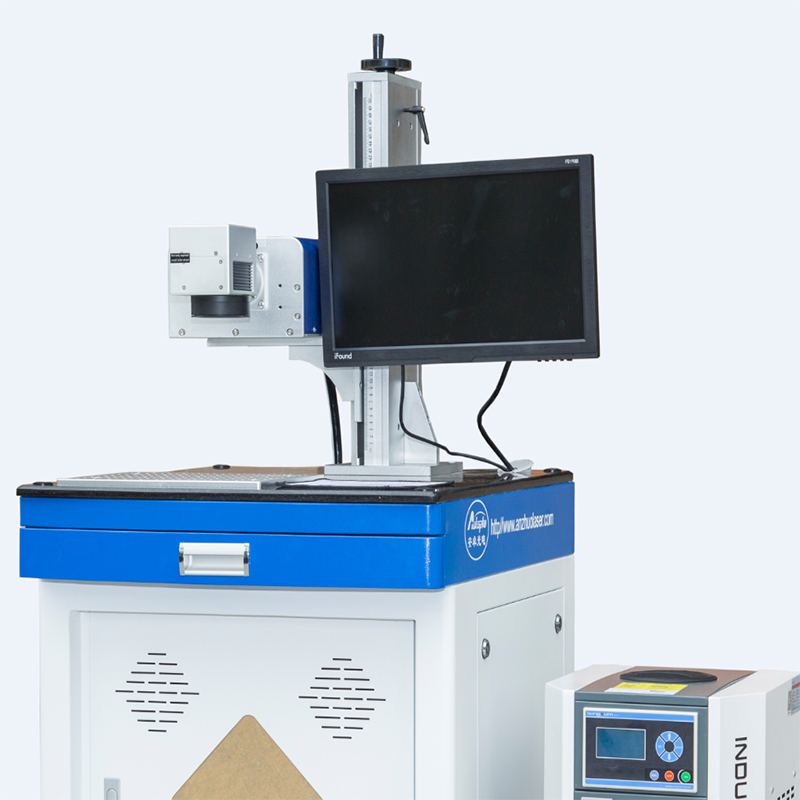

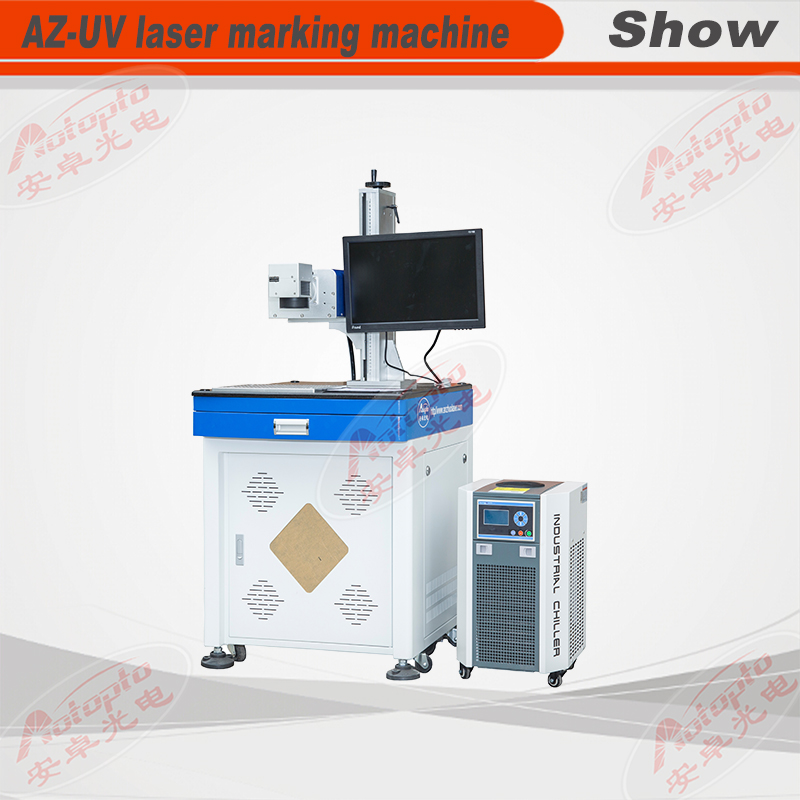

UV Laser marking machine

UV Laser marking machine
UV Laser marking machine
UV Laser marking machine

Product ID: 6354

Hits: 134

Company: Dongguan Aotopto Technology Co.LTD

Keywords: laser marking machine   /   UV laser marking machine   /   laser engraving machine

Inquiry Favorite

Five Advantages Of Products

  • Economical and practical, cost-effective.
  • High quality core components, reliable quality.
  • Easy to operate, easy to understand, and good maintainability.
  • The heat affected area is very small so as to avoid the deformation, damage or burn during processing ,and the yield is high.
  • The application are widely used to make up for the defects of the infrared laser marking process.

Product Details

Technical Parameter

Model:AZ-UV series

Laser power (W):3W/5W

Working area (mm):100*100*40200*200*80

Marking speed :0~7000(mm/s)

Overall dimension (mm):1000*1300*1700

Repeated positioning accuracy (mm):≤±0.002mm

Supply voltage:AC220±10%,50HZ/60HZ

Working environment:Temp:10~ 30°C,

Gross power:<0.8   (auxiliary machine excluded)


Apply to PVC, rubber, plastic, aluminum, copper, gold, silver, etc.
